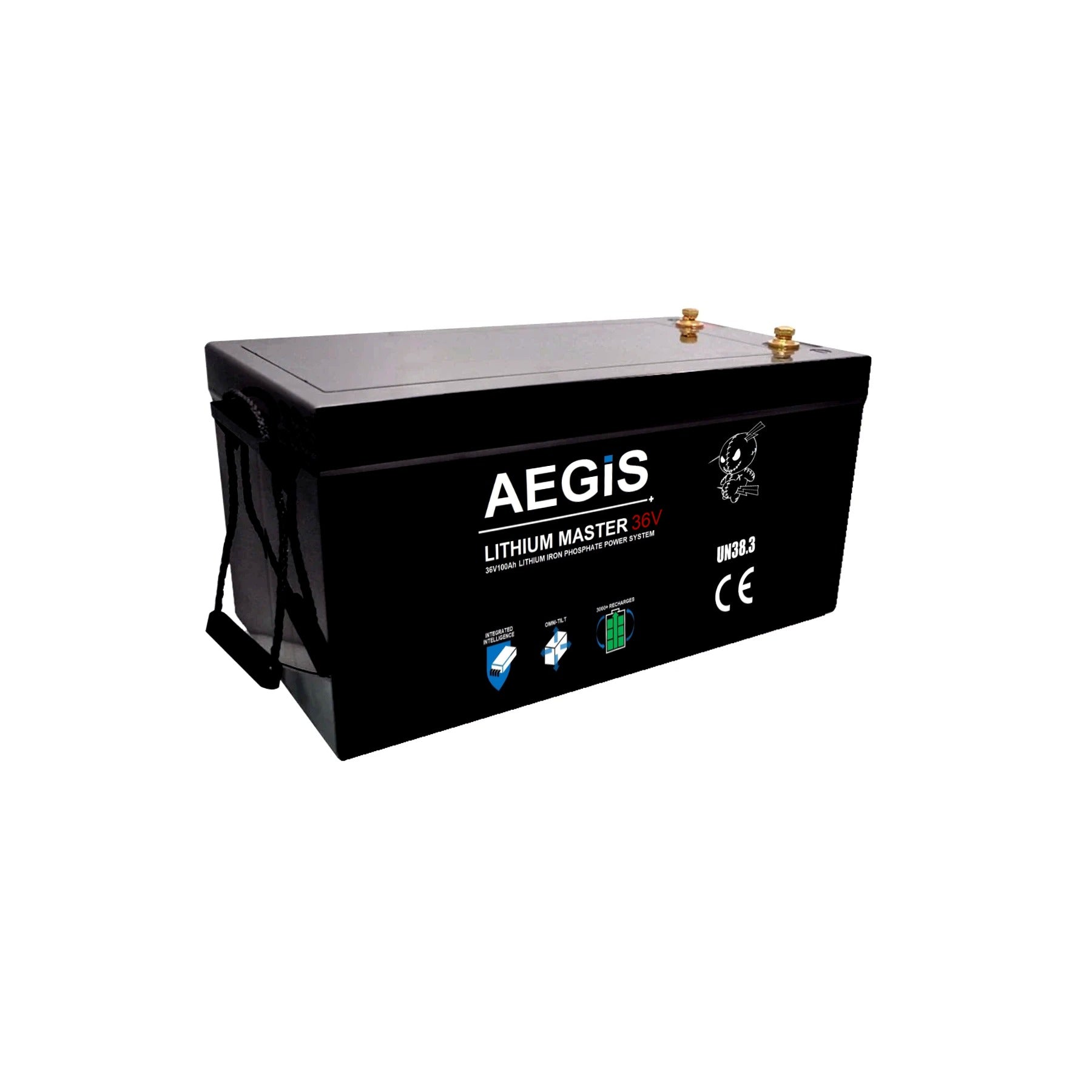

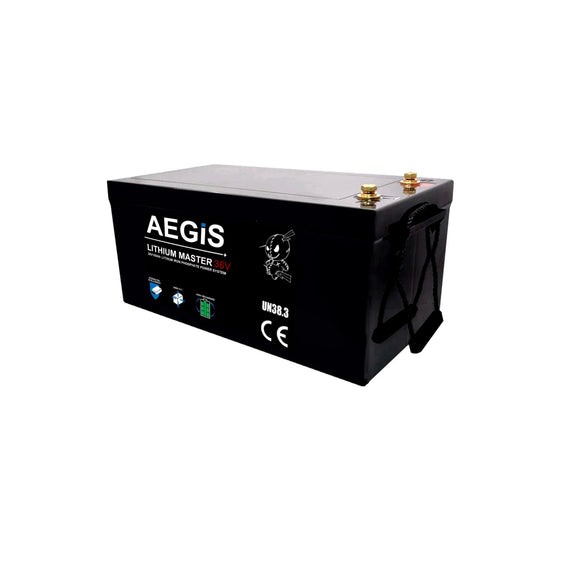

36V 100Ah LiFePO4 Deep Cycle Battery


Lithium Master

RV / Motorhome

ALF-0360100A + CRF-3620M

Out of stock

Regular price $1,799.99
The Lithium Master 36V 100Ah LiFePO4 Battery is a state of the art rechargeable battery pack made with Lithium Iron Phosphate cells designed for 36V devices. It is perfect for solar storage, rv's and motorhomes, boats and marine applications, robots, and other applications that require a higher-energy density battery. The battery...

The Lithium Master 36V 100Ah LiFePO4 Battery is a state of the art rechargeable battery pack made with Lithium Iron Phosphate cells designed for 36V devices. It is perfect for solar storage, rv's and motorhomes, boats and marine applications, robots, and other applications that require a higher-energy density battery. The battery comes with integrated Anderson Powerpole connectors making it a perfect drop in solution for your applications. Lithium Master batteries have a built in battery management system (BMS) that keeps the battery running at peak performance and protects the cells for thousands of cycles, including over-charge, over-discharge, over-current, and short-circuit protection.

Specifications

Battery Type ABS Case
Battery Chemistry Lithium Iron Phosphate - LiFePo4
Cell Type/Assembly Method Cylindrical cells/welded
Voltage (V) 36V
Capacity (Ah) 100Ah
Energy Stored (Wh) 3600 Watt-Hours
Weight 76.17 lbs. (34.55 kg)
Dimension (L x W x H) 490 mm x 260 mm x 220 mm
Cycle Life 2000+ cycles
Normal Charge Current 18.0 Amps
Maximum Continuous Charge Current 50.0 Amps
Nominal Continuous Discharge Current 50.0 Amps
Maximum Continuous Discharge Current 100.0 Amps
Maximum Pulse (Peak) Discharge Current (2 sec.) 200.0 Amps
Charge Temperature 0°C to 45°C
Discharge Temperature -20°C to 60°C
Operating Humidity 60±25%R.H
Storage Humidity 60±25%R.H
Automatic Battery Protection Module/System Low Voltage Disconnect,
Over Voltage Disconnect,
Short Circuit Protection,
Reverse Polarity Protection,
Cell Balancing



Compatible AC-to-DC Charger Specifications:

Input Voltage: AC110V-240V, 50/60HZ
Output Voltage: 43.8VDC
Current: 18A
Connector: Alligator Clip
Model Number: CRF-03618M



LFP Advantage

  • Advanced LFP (Lithium Iron Phosphate) Li-ion Chemistry superior to traditional Li-ion Batteries
  • All-Aspect Solution with best overall balance of features
  • High Specific Energy (90-120Wh/kg)
  • Designed Specifically for Marine, RV and Deep Discharge Electronics
  • Excellent Lifespan (3000+ Cycles Average)

lfp lifepo4 lithium battery by lithium master


Intelligent Technology

  • Battery Management System (BMS) Board as Standard
  • Every Battery has bespoke board matching its performance parameters
  • Comprehensively balances charging and discharging
  • Internal balancing circuitry and charger circuitry inside BMS
  • Comprehensive protections against over-charge, over-discharge, over-voltage, over-current, short circuits, reverse polarity, thermal protection
  • Dramatically extends service life

Improvements

  • Achieve full depth discharge of 100% Label Capacity
  • “True Lithium Capacity” guarantees capacity of purchase is capacity delivered
  • Reliable, repeatable full depth cycling without system life cycle degradation
  • LFP Systems can be fully discharged safely without impact on system performance
  • Multiple times usable capacity of Lead Acid



Policy
Warranty: 10 years standard Lithium-Ion Battery Warranty
Repair or Replace: first 5 years
Returns/exchange: 30 days
Cancellation: Within 24 Hours ⟶ No charge
Shipping: Standard within 2-3 business days
